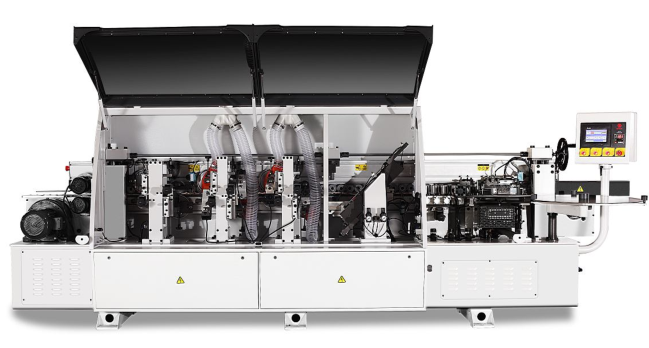

mdf melamine veneer pvc edge banding machine. Basic function with affordable price.
Item NO.:
SE-105Product Origin:
ChinaShipping Port:
ShanghaiLead Time：
30 days
Machine Advantages
1. Automatic lifting system
2. 10cun Touch panel type computer screen control
3. Machine controlled by a limit swich and a encoder, Only accept a single signal can do all the banding processes, reduce the contact point in order to reduce the error rate and precision control the edge band margin.(3-5mm)
4. Rotary type edge band support disk.
5. Edge band feed table adopt double deck design, in order to reduce the effect of hot belt glue to the edge band.
6. Feed heating devices 0.22kw
7. Automatic gluing system.
8. Air pressure type edge banding press roller sets.
9. Use German linear guide rail structure, which has very high intention and precision.
10. Double head high speed trimming devices 0.35kwX2（Independent interver control，with 2 Cropping saw disc）
11. Up/Down high speed rough trimming devices（with numeration adjustment display panel）0.7kwX2（Independent interver control，with 2 flat trimming knives）
12. Up/Down high speed precision trimming devices（with numeration adjustment display panel）0.7kwX2（Independent interver control，withR2 2 flat trimming knives）
13. Up/Down 2mmPVC scraper（with numeration adjustment display panel and dust extraction system）（with 2 R2 scraper knives）
14. Up/Down polishing devices 0.37kwX2（with 2 polishing wheels ）
Machine Specifications
| Edge band thickness | 0.4 - 3 mm | Panel thickness | 10 - 60 mm |
| Feed belt speed | 15m/20m/23m/min(Three speed) | Min Panel width | 35 mm |
| Min Panel length | 150 mm | Panel interval | 520-580mm |
| Total power | 9.8kw（Including interver、transfer motor） | Air pressure | 6.5kg |
| Equipment weight | 1750kg | Packing size | 4500 x 1000 x 1600 mm |
