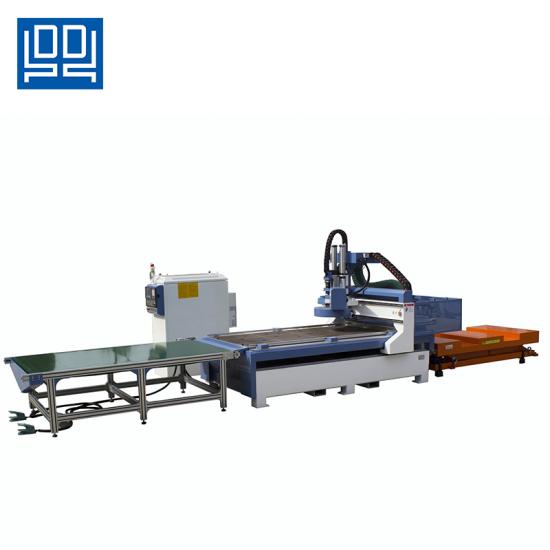

Automatic loading and unloading machine, one person can operate and collect the materials of two machines, manual labeling, the machine can continue to work when receiving, and help to clean up the table instantly. On average can production 170 square meters cabinets each day, and the labor intensity is low.
Brand:
DEELEEItem NO.:
DLSG01SJ-1325Product Origin:
ChinaShipping Port:
ShanghaiLead Time：
30 days
Machine Advantages
 |
Three axis all use screw rod transmission. full-screw transmission machine has good synchronization performance and no rotation gap, which is more suitable for the kitchen cabinet processing with high precision requirements. The angle is well raised, and there is no knife mark. The screw machine has high stability and is not easy to break the knife. The Φ6 tool bit can also cut smoothly, it is easy to break if use gear rack machine. |
 |
The table has a double-layer structure and a gas storage cavity, which greatly increases the empty adsorption capacity. |
 |
Own designed dust collector, the dust removal effect can make the dust in the slit of the knife little, and there is almost no dust on the table during processing, let the workshop clean and tidy. |
 |
PMI guide rails are matched with three PMI/silver sliders on each guide rail to increase machine stability. |
 |
9kw air cooling HSD spindle from Italy. High tool change speed with 20 tools storage. |
Machine Specifications
| Working size | 1200*2440*380mm | Guide rail | PMI straight square rail |
| Spindle | 9kw HSD air cooling | Motor | Yaskawa Servo Motor |
| Transmission method | Taiwan TBI high precision screw drive | Control system | Taiwan Syntec |
| Vacuum pump | 6kw air cooling pump | Run command | G code, F/S command compatible |
| Cutting accuracy | ±0.15 | Weight | 3500kg±10% |
