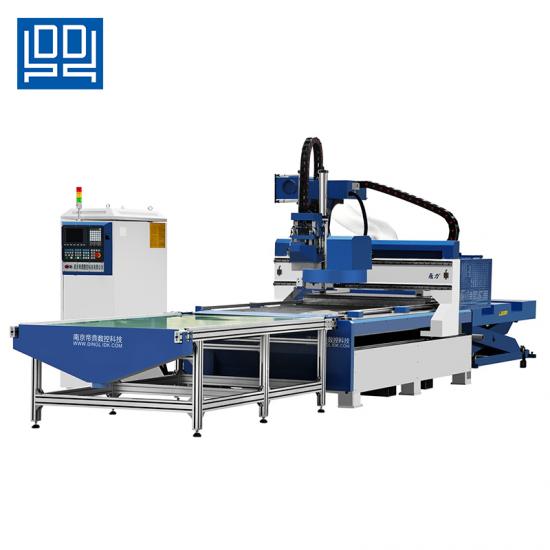

CNC nesting machining center for cabinet furniture making, with auto loading and unloading system, one day can process 150pcs boards for cabinet nesting or 40pcs boards for kitchen cabinet door engraving and nesting.
Brand:
DEELEEItem NO.:
DLSG01SJ-1325Product Origin:
ChinaShipping Port:
ShanghaiLead Time：
30 days
Machine Advantages
 |
Three axis all use screw rod transmission. full-screw transmission machine has good synchronization performance and no rotation gap, which is more suitable for the kitchen cabinet processing with high precision requirements. The angle is well raised, and there is no knife mark. The screw machine has high stability and is not easy to break the knife. The Φ6 tool bit can also cut smoothly, it is easy to break if use gear rack machine. |
 |
The table has a double-layer structure and a gas storage cavity, which greatly increases the empty adsorption capacity. |
 |
Own designed dust collector, the dust removal effect can make the dust in the slit of the knife little, and there is almost no dust on the table during processing, let the workshop clean and tidy. |
 |
PMI guide rails are matched with three PMI/silver sliders on each guide rail to increase machine stability. |
 |
9kw air cooling HSD spindle from Italy. High tool change speed with 20 tools storage. |
Machine Specifications
| Working size | 1200*2440*380mm | Guide rail | PMI straight square rail |
| Spindle | 9kw HSD air cooling | Motor | Yaskawa Servo Motor |
| Transmission method | Taiwan TBI high precision screw drive | Control system | Taiwan Syntec |
| Vacuum pump | 6kw air cooling pump | Run command | G code, F/S command compatible |
| Cutting accuracy | ±0.15 | Weight | 3500kg±10% |
Nesting ATC cnc router machine with drill block. Machine can continue to work during the loading. Instantly clean the table for an average of five minutes to process a board without interruption. One person can do 300 square meters a day on average, and the labor intensity is low.
